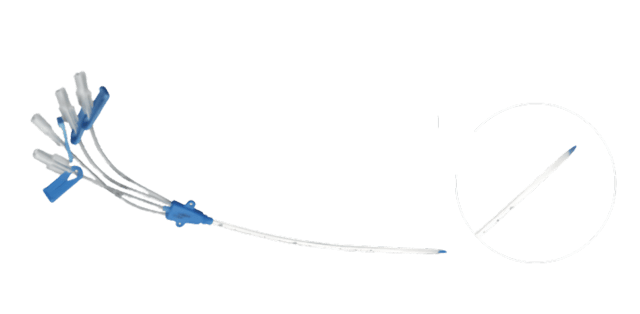

8.5Fr 16cm Four Lumen Central Venous Catheter Kit

Central Venous Catheter mad of specially formulated & bio compatible polyurethane material provides strength during insertion & also softens at body temperature to confirm to the body tissues and reduces the risk and vascular trauma.

Specially designed soft & beveled tip for smooth & easy insertion of catheter

Soft flexible J-Tip guide wire prevents the vessel perforation & also provides goods torque to ensure firm insertion

Sufficiently radio-opaque material of catheter with clear, define marking facilitates corrects placement of catheter tip

Sterile ready for use

Individually tray packed

Complete Set of Central Venous Catheter Kit Consist of:

• Indwelling Catheter
• Y Introducer Needle Check Valve
• J-Tip Guide Wire
• Vessel Dilator
• Luer Lock Syringe
• Scalpel
• Catheter Holder
• Catheter Holder Clamp
• Injection Cap
• Extension Line Clamp
• Guide Syringe / LOR Syringe (Optional)

Technical Specification

• Lumen – Four
• Model Number – 4 Lumen 8.5Fr 16cms
• Catheter Size (Gr/Fr) – 8.5 Fr
• Lumen (Ga) – 14, 16, 18, 18
• Gather Length (cms) – 16 cms
• Dilator (Fr) – 9 Fr
• Guide Wire - 0.035 X 45 cm
• Guide Wire Material – Nickel Titanium.
• Distal – Double Distal
• Standard Needle – PCVC-8.504-16
• Y Needle Standard Syringe – PCVC-8.504-16YN
• Standard Needle Introducer Syringe - PCVC-8.504-16IS
