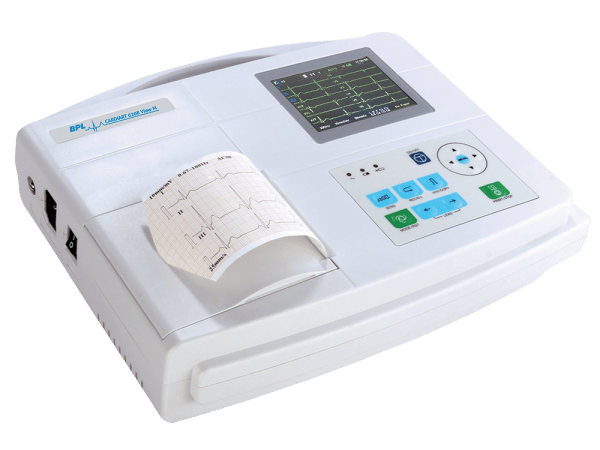

CARDIART 6208 View (3-channel ECG)
₹58,000
₹69,375 (16%OFF)1 item left in Stock
Features
- Three-Channel ECG Recording
- 3.5 Inch Color LCD Screen
- Automatic Measurement And Interpretation
- ≥12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency
- Internal storage for up to 500 ECGs that can be enlarged by USB
- High performance Li-ion rechargeable battery
- Report formats: PDF and optional SCP/FDA-XML/DICOM
- Connectivity: FTP, supports barcode scanner & USB Printer
- Optional: PC interface software
Estimated Delivery Time:_5 to 7 Working Days
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Specifications
| Brand | BPL |
Description of product
Cardiart 6208 View
A three-channel ECG system with auto summary and colour LCD screen displaying clear output. With simultaneous acquisition of 12 leads, Cardiart 6208 View measures and interprets the readings with built-in ECG parameters. Experience fast, simple ECG process & an improved diagnosis.
Features
- Three-channel ECG recording
- 3.5 inch color LCD screen
- Automatic measurement and interpretation
- ≥12-bit A/D converter, 0.05 – 150 Hz bandwidth, 1000 Hz sampling frequency
- Internal storage for up to 500 ECGs that can be enlarged by USB
- High performance Li-ion rechargeable battery
- Report formats: PDF and optional SCP/FDA-XML/DICOM
- Connectivity: FTP, supports barcode scanner & USB Printer
- Optional: PC interface software
Product Specifications
| General | |
| Display | |
| Size & Resolution | 3.5" Monochrome 320x240 pixels LCD screen |
| Power Supply | |
| Power Supply Range | AC 100V-115V/220V-240V ± 10%, 50/60Hz |
| Power Consumption | |
| Battery | Rechargeable Li-ion battery (2200mAH) |
| Battery Capacity | In 3-channel mode, it can work about 6.5 hours. It can continuously record about 3 hours in Manual mode, and record 330 reports at most in the AUTO mode. |
| Battery Charging Indicato | Yes |
| Battery Low Indication | Yes |
| Recharging Time | Approximately 5 Hours for 100% charging |
| Mains Protection | Fuse: T400mA 250V Ø5×20 / T200mA 250V Ø5×20 |
| Environmental | |
| Operating Temperature | 5o to 40o C |
| Relative Humidity | 25 to 80% non condensing |
| Standards | |
| Safety Standard | Compliant to Class I type CF, IEC-60601-1 and 60601-2-25 standards |
| EMC | IEC-60601-1-2 |
| Others | |
| Dimension | 300mm (L) x 260mm (W) x 85mm (H) |
| Weight | 2.5Kgs. |
| ECG | |
| ECG Acquisition | 12 bits; 1000 samples/sec/channel |
| ECG Leads | Standard 12 leads; acquired 12 leads |
| Recording Sensitivity | |
| Filters | DFT Filter: 0.05Hz / 0.15Hz / 0.25Hz / 0.32Hz / 0.5Hz / 0.67Hz |
| EMG Filter: 25Hz / 35Hz / 45Hz / OFF | |
| LOWPASS Filter:150Hz / 100Hz / 75Hz | |
| Signal Memory | 2.5mm/mV, 5mm/mV, 10mm/mV, 20mm/mV, AGC |
| Operating Modes | Manual - acquisition and printing in real time ; Auto - simultaneous acquisition |
| Parameter Calculation | Yes, in auto mode (selectable) |
| Keyboard | Tactile keypad with 9 function keys and LED function indicators |
| Internal Memory | 200 ECGs |
| Input Dynamics | ± 500mV @ 0 Hz; ± 5mV in the pass band |
| Input Impedance | >=50M Ω |
| Frequency Response | 0.05 Hz to 150 Hz (-3dB) without mains/muscle filters |
| Time Constant | >3.2 seconds |
| CMRR | >110dB |
| DF Protection | Internal |
| Printer | |
| Recording System | Thermal dot matrix printer, 72mm usable print width |
| Thermal Paper | In rolls: Height 80mm, Length 20m, gridded |
| Print Channel | 3 |
| Paper Transport Speed | 5/6.25/10/12.5/25/50mm/sec (+ 3%) |
| USB Port | Select HP printer only |
| Standerd Accessories | |
| Patient Cable | 1 no. |
| Limb Electrodes | 4 nos. |
| Paper Roll | 1 no. |
| Accesory Bag | 1 no. |
| Battery Charger | 1 no. |
| Chest Electrodes | 6 no. |
| Gel Bottle | 1 no. |
| User Manual | 1 no. |
