64a6b4b90be18d369a9e0a5e CARDIART 9108D - 12-Channel ECG https:https://www.thepassbox.in/s/62aa95d9abc8fddaf93b9bf6/64a6a30cf83a0d36e9f60dcc/cardiart-9108-d-front-1615271934.png

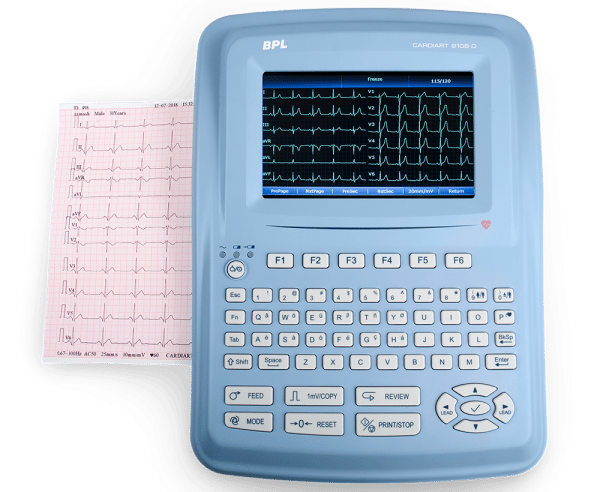

CARDIART 9108D - 12-Channel ECG

Cardiart 9108D is a compact 12-Channel ECG recorder that comes with advanced Glasgow ECG interpretation algorithm - one of the world's leading resting ECG interpretation. It has a large high-resolution color touch screen and supports external USB printer and multi-format reports export. Experience fast, accurate and simple ECG process & an improved diagnosis.

Features
    • 12-channel ECG recording
    • 7-inch high resolution color LCD with touch screen option
    • Glasgow ECG Interpretation algorithm
    • 24-bit A/D converter, 0.01 - 300 Hz bandwidth, 16000 Hz sampling frequency
    • Internal storage of upto 800 ECGs that can be enlarged by USB & SD card
    • High performance Li-ion rechargeable battery
    • Report formats: PDF and optional SCP/FDA-XML/DICOM data export
    • Connectivity: FTP, supports barcode scanner & USB printer, optional Wi-Fi
    • Optional PC interface software allows to access EMR/PACs/GDT-based Systems (HL7 protocol)

Product Specifications
General
Display5.7 inch single color LCD Display
Weightapprox.5.0kg (11.0 lbs)(Excluding recorder paper and battery)
Dimension420mmx330mm x105mm
Communication InterfaceEthernet, RS232, USB

Power Supply
Power Supply100V-240VAC, 50Hz/60Hz
BatteryBuilt-In Rechargeable 14.8V, Li-Ion Battery, 2500 mAh
Battery LifeWhen the battery is fully charged, Cardiart 9108 can work normally about 4 hours, and it can continually print about 1.5 hours in the manual mode or print about 300 ECG reports of 3×4+1R in the auto mode

Environmental
Transportation and StorageTemperature: 20ºC~ +55ºC
Relative Humidity: 25%~93%,Non-Condensing
WorkingTemperature: +5ºC ~ +40ºC
 Relative Humidity: 25%~80%,Non-Condensing

ECG
Leads:12 standard leads
Acquisition Mode:simultaneously 12 leads
A/D:24 bits
Resolution:2.52uV/LSB
Time Constant:≥3.2s
Product Specifications
Frequency Response0.05Hz ~ 150Hz (-3dB)
Gain2.5, 5, 10, 20, 10/5, AGC (mm/mV)
Input Impedance≥50MΩ (10Hz)
Input Circuit Current≤0.01μA
Input Voltage Range≤±5 mVpp
Calibration Voltage1mV±2%
DC Offset Voltage±600mV
Noise≤12.5 μVp-p
Multichannel crosstalk≤0.5mm
FilterAC Filter: On/Off
DFT Filter: 0.01Hz/0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
EMG Filter: Off/25Hz/35Hz/45Hz
LOWPASS Filter: 300Hz/270Hz/150Hz/100Hz/75Hz
CMRR≥123dB
Sampling Frequency16000Hz
Anti-baseline DriftAutomatic
Heart Rate Range30-300 bpm, ±1 Bpm

Pace Maker Detection
Amplitude±2 to ±700 mV
Width0.1 to 2.0 ms
Sampling Frequency16,000Hz / Sec/ Channel

Printer
RecorderThermal printer
Record PaperFolded thermal paper: 210mm×295mm×100pages
Folded thermal paper: 215mm×280mm×100pages (Optional)
Rolled thermal paper: 210mm×30m (Optional)
Print ModesManual: 3, 6 and 12, Auto: 3x4,3x4+1R,3x4+3R,6x2,6x2+1R,12x1
RhythmSingle lead and three lead
R-R Mode AnalysisR-R histogram and R-R trend
Record Speed (mm/secs)5,6.25,10,12.5,25 and 50MM/SEC (±3%)

Standard Accessories
Patient Cable1 no.
Chest Electrodes6 nos
Limb Electrodes4 nos.
Power Cord1 no.
Cardi-Jelly Bottle1 no.
Paper Roll1 no.
User Manual1 no.
SKU-QKAOUIJNZNS
in stockINR 109000
BPL
1 1
CARDIART 9108D - 12-Channel ECG

CARDIART 9108D - 12-Channel ECG

Be the first to review this product
₹109,000
₹122,250   (11%OFF)
1 item left in Stock
Add to Cart Buy Now
Sold By: PBX202012
Features
  • 12-channel ECG recording
  • 7-inch high resolution color LCD with touch screen option
  • Glasgow ECG Interpretation algorithm
  • 24-bit A/D converter, 0.01 - 300 Hz bandwidth, 16000 Hz sampling frequency
  • Internal storage of upto 800 ECGs that can be enlarged by USB & SD card
  • High performance Li-ion rechargeable battery
  • Report formats: PDF and optional SCP/FDA-XML/DICOM data export
  • Connectivity: FTP, supports barcode scanner & USB printer, optional Wi-Fi
  • Optional PC interface software allows to access EMR/PACs/GDT-based Systems (HL7 protocol)

Estimated Delivery Time:_5 to 7 Working Days


SHARE PRODUCT
VARIANTSELLERPRICEQUANTITY

Specifications

BrandBPL

Description of product

CARDIART 9108D - 12-Channel ECG

Cardiart 9108D is a compact 12-Channel ECG recorder that comes with advanced Glasgow ECG interpretation algorithm - one of the world's leading resting ECG interpretation. It has a large high-resolution color touch screen and supports external USB printer and multi-format reports export. Experience fast, accurate and simple ECG process & an improved diagnosis.

Features
    • 12-channel ECG recording
    • 7-inch high resolution color LCD with touch screen option
    • Glasgow ECG Interpretation algorithm
    • 24-bit A/D converter, 0.01 - 300 Hz bandwidth, 16000 Hz sampling frequency
    • Internal storage of upto 800 ECGs that can be enlarged by USB & SD card
    • High performance Li-ion rechargeable battery
    • Report formats: PDF and optional SCP/FDA-XML/DICOM data export
    • Connectivity: FTP, supports barcode scanner & USB printer, optional Wi-Fi
    • Optional PC interface software allows to access EMR/PACs/GDT-based Systems (HL7 protocol)

Product Specifications
General
Display5.7 inch single color LCD Display
Weightapprox.5.0kg (11.0 lbs)(Excluding recorder paper and battery)
Dimension420mmx330mm x105mm
Communication InterfaceEthernet, RS232, USB

Power Supply
Power Supply100V-240VAC, 50Hz/60Hz
BatteryBuilt-In Rechargeable 14.8V, Li-Ion Battery, 2500 mAh
Battery LifeWhen the battery is fully charged, Cardiart 9108 can work normally about 4 hours, and it can continually print about 1.5 hours in the manual mode or print about 300 ECG reports of 3×4+1R in the auto mode

Environmental
Transportation and StorageTemperature: 20ºC~ +55ºC
Relative Humidity: 25%~93%,Non-Condensing
WorkingTemperature: +5ºC ~ +40ºC
 Relative Humidity: 25%~80%,Non-Condensing

ECG
Leads:12 standard leads
Acquisition Mode:simultaneously 12 leads
A/D:24 bits
Resolution:2.52uV/LSB
Time Constant:≥3.2s
Product Specifications
Frequency Response0.05Hz ~ 150Hz (-3dB)
Gain2.5, 5, 10, 20, 10/5, AGC (mm/mV)
Input Impedance≥50MΩ (10Hz)
Input Circuit Current≤0.01μA
Input Voltage Range≤±5 mVpp
Calibration Voltage1mV±2%
DC Offset Voltage±600mV
Noise≤12.5 μVp-p
Multichannel crosstalk≤0.5mm
FilterAC Filter: On/Off
DFT Filter: 0.01Hz/0.05Hz/0.15Hz/0.25Hz/0.32Hz/0.5Hz/0.67Hz
EMG Filter: Off/25Hz/35Hz/45Hz
LOWPASS Filter: 300Hz/270Hz/150Hz/100Hz/75Hz
CMRR≥123dB
Sampling Frequency16000Hz
Anti-baseline DriftAutomatic
Heart Rate Range30-300 bpm, ±1 Bpm

Pace Maker Detection
Amplitude±2 to ±700 mV
Width0.1 to 2.0 ms
Sampling Frequency16,000Hz / Sec/ Channel

Printer
RecorderThermal printer
Record PaperFolded thermal paper: 210mm×295mm×100pages
Folded thermal paper: 215mm×280mm×100pages (Optional)
Rolled thermal paper: 210mm×30m (Optional)
Print ModesManual: 3, 6 and 12, Auto: 3x4,3x4+1R,3x4+3R,6x2,6x2+1R,12x1
RhythmSingle lead and three lead
R-R Mode AnalysisR-R histogram and R-R trend
Record Speed (mm/secs)5,6.25,10,12.5,25 and 50MM/SEC (±3%)

Standard Accessories
Patient Cable1 no.
Chest Electrodes6 nos
Limb Electrodes4 nos.
Power Cord1 no.
Cardi-Jelly Bottle1 no.
Paper Roll1 no.
User Manual1 no.
