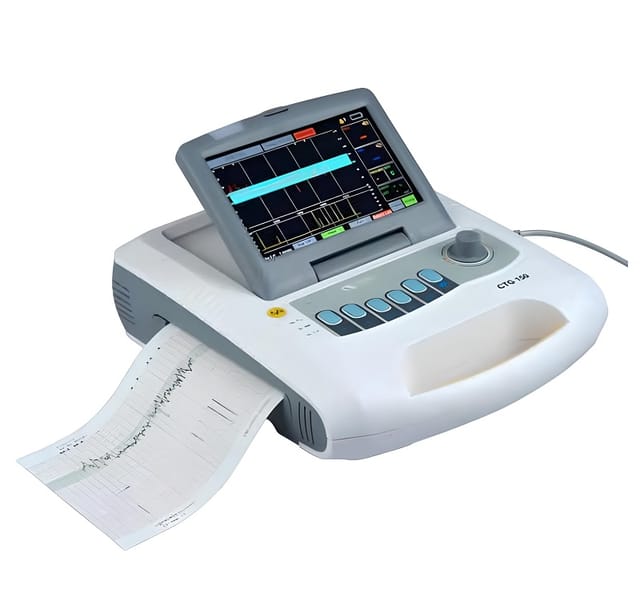

CTG 150 Portable Fatal Monitor
₹82,250
₹110,000 (25%OFF)
1 item left in Stock
Features
- 7 " Colour TFT Display
- in build 6 " thermal Arrey Printer
- Pulse Doppler Technology with 9 Element
- Automatic fatal moment detection
- Twin & wireless probs ( optonal)
- Patient data storate more than 10 HRS
- PC / Server connectivity via USB/BT/GSM ( optonal)
Estimated Delivery Time:_5 to 7 Working Days
| VARIANT | SELLER | PRICE | QUANTITY |
|---|
Specifications
| Brand | MAESTROS ELECTRONICS |
Description of product
CTG 150 Portable Fatal Monitor
Feature:
- Portable Fatal Monitor
- 7" Colour TFT Display
- Inbuilt 6" Thermal Array Printer
- Pulse Doppler Technology With 9 Elements
- Automatic Foetal Moment Detection
- Automatic Analysis Facility
- Twin & Wireless Probes (Optional)
- Patient Data Storage For More Than 10 HRS
- PC/ Server Connectivity Via USB/BT/GSM (Optional)
Technical Specification:
Fetal Heart Rate
|
Technique |
Pulse Doppler with Auto Correlation |
|
Frequency |
1 MHz |
|
Measurement Range |
50 to 210 BPM / 30 to 210 BPM |
|
Intensity |
1 BPM |
|
Scaling |
<10M W/ sq.cm |
|
Resolution |
30 BPM |
|
FHR Chart width |
8 cm |
Uterine Activity
|
Technique |
Strain Guage Sensor Element |
|
Measurement Range |
0 - 100 Units |
|
Chart Width |
4 cm |
Recorder
|
Type |
High Resolution Thermal Printer |
|
Chart Speed |
1/2/3 cm/min |
|
Record Paper |
Zfold/ Thermo Sensitive Paper |
Physical Characteristics:
|
Weight |
<1.5kg |
|
Dimensions |
73 H X 295 W X 240 D (mm) |
Electrical:
|
Power Supply |
100-240VAC 50 Hz + 10%, 60Hz |
|
Power Consumption |
<50W |
|
Inbuilt Battery |
Rechargeable 11.1V, 4400 mAh Li-ion |
|
Battery Operating Time |
>3 Hours |
|
Speakers |
2W |
Operating & Storage Condition:
|
Operating Temperature |
40° C |
|
Storage Temperature |
60° C |
|
Pressure |
50 to 160Kpa |
|
Humidity |
Up to 90% Non-Condensing |
