Technical Specifications

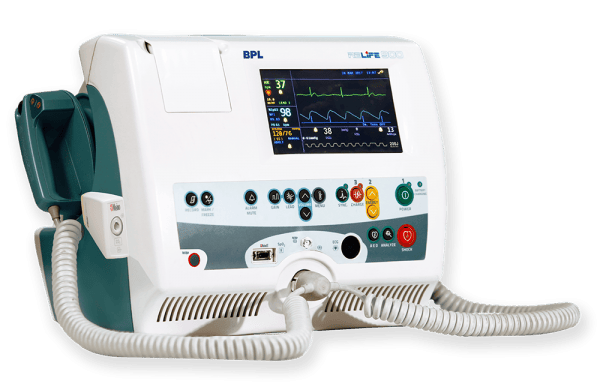

Manual Defibrillator

Defibrillator Waveform

Current Controlled, Biphasic

Energy Selection Option

2-300 Joules in steps of 2, 3, 5, 7, 10, 20, 30, 50, 70, 100, 150, 200, 250, 300 Joules

Energy Selection Control

Selected using keys located on the front panel or on the sternum paddle

Charge Control

Control on the front panel and on the apex paddle

Charge Ready Indication

Charge done LED on the front panel CHARGE key and Charge done LED on the apex paddle

Synchroniser

Energy is delivered within 50 msec of the detected R-wave peak

Patient Impedance

25 – 200 Ohms

AED

AED Mode Selection Control

Control on the front panel

Shock Sequence

Low-Low-Low / Low-Low-High / Low-High-High (User selectable)

Charge Ready Indication

Onscreen display, voice prompt and blinking LED in the SHOCK key

Shock Delivery Control

Control on the front panel with blinking LED

ECG Analysis Time

< 15 seconds

ECG

ECG Input Modes

ECG input through Paddles or ECG Patient cable

ECG Lead Selection

LEAD I / II / III / PADDLES (3 Lead Patient cable)

LEAD I / II / III / aVR / aVL / aVF / V / PADDLES (5 Lead Patient cable

CMRR

>90 dB at 50 Hz

Frequency Response

0.5 to 40 Hz

Heart Rate Display

10 to 300 bpm; Accuracy ± 2 bpm

User Gain Settings

8 level setting 2.5, 5, 7.5, 10, 15, 20, 30 and 40 mm/mV

Sweep Speed

25 ± 1 mm/sec

Reset Recovery

Automatic recovery of waveform within 0.5 seconds after overload or defibrillation

MASIMO SPO2

Spo2 Range

1 – 100%

Accuracy

 ±2% (adult/child, in non-motion state), ±3% (adult/child, in motion state) within the measurement range of 70%~100%. 1%~69% is not defined.

Averaging Time

2-4 / 4-6 / 8 / 10 / 12 / 14 / 16 Seconds (User selectable)

Resolution

1%

Pulse Rate Rang

25 – 240 bpm

Perfusion Index Resolution

0.01%

SunTech NIBP

Method

Oscillometric

Operating Modes

Manual, Automatic and Stat

Blood Pressure Range

Systolic

Adult: 40 – 250 mmHg | Paediatric: 40 – 230 mmHg

Diastolic

Adult: 20 – 200 mmHg | Paediatric: 20 – 160 mmHg

MAP

Adult: 26 – 220 mmHg | Paediatric: 26 – 183 mmHg

Pressure Transducer Accuracy

± 3 mmHg or 2% of the reading whichever is greater

Cycle Time in Auto mode

1, 2, 3, 5, 10, 15, 30, 60, 90 Minutes (User selectable

Cycle Time in Stat mode

5 Minutes

Thermal Recorder

Paper Speed

25 ± 1 mm/sec

Paper Size And Type

Thermal paper in rolls. 58 mm width, 15 meters

Print Channel

1

General

Display

7” Colour TFT, Resolution 800 x 480

Dimensions

370 mm (W) x 300 mm (H) x 290 mm (D)

Weight

Less than 8.5 Kg. (including battery, external paddles)

Operating Temperature Range

0 to 40 ˚C at non-condensing RH between 15 and 95%

Storage Temperature Range

-10 to 60˚C at non-condensing RH between 20 and 80%

AC Input

100 – 240 Vac, 50/60 Hz

Power Consumption

< 240 VA

Battery Type

Sealed Lead Acid 12V, 4.5 AH, Rechargeable

Battery Capacity

> 100 discharges of 300 Joules

Battery Charging Time

Approx. 3 hours to 90% of full capacity. 18 hours to 100% capacity

Event Information

Last 24 critical events are stored along with ECG information. Events include MARK key press, Shock delivery and HR Alarm violation.

Trend

Last 200 NIBP measurement data and last 200 Alarm violation information
