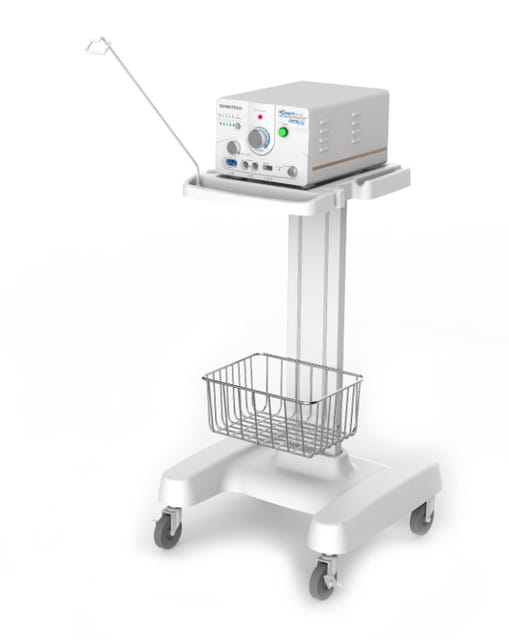

Dr Oppel Radio Frequency Generator



Dr Oppel Radio Frequency Generator- 4MHz Radio Frequency Surgical Device

Dr. Oppel’s electrode is not being heated by itself, electrode lets the cellular tissue produce the joule heat, and operates haemostasis, cutting and coagulation. 4MHz radio frequency makes possible precise cutting and deep coagulation even in water. Moreover, coagulation depth is determined by electrode as 5mm, 3mm and 2mm.

All functions can be carried out by just choosing the electrode& controlling output power without any mode change such as pure cut, blended cut, coagulation, micro coagulation, etc. The innovative & new function enables user to make more accurate & safer coagulation by time selection (continuous, 1Sec, 1/2Sec, 1/4Sec, 1/8Sec).


There is no carbonization and damages to the surrounding cellular tissue by electric spark and safety can be secured because this system is free from electric shock and burn which current electric surgical units make.



Applications
• Proctology
• General Surgery
• OB. /Gynaecology
• ENT
• Dermatology
• Plastic Surgery
• Urology
• Ophthalmology
• Pain Clinic



Features

The Radio Frequency Output 4 MHz

  • The Precision Operation is Capable
  • By Minimizing Damage to the Cellular Tissue, the Fast Healing Can Be Secured

Compact Design with Great Output Power

  • 700W Peak Power on 200Ω Ohm

No Odour & Smoke in Operation

Coagulation Depth Is Determined By Electrode –

  • 6mm Semi-Ball Electrode – Coagulation to the 5mm in Depth
  • 4mm Semi-Ball Electrode – Coagulation to the 3mm in Depth
  • 3mm Semi-Ball Electrode – Coagulation to the 2mm in Depth



Capable in Not Only Open Surgery but in Endoscopic Surgery also

Excellent Function of Haemostasis & Coagulation Are Performed Even In Heavy Bleeding

Low Voltage of Radio Frequency Output, Bringing Up No Electric Spark, There is Neither Carbonizing Nor Damage of Surrounding Cellular Tissue

Safety Can Be Secured Because This System is Free from Electric Shock & Burn

Bipolar & Monopolar Function

Durable & Long Life



Product Specification

Model Name/Number

Dr Oppel ST-501

Output Power

Monopolar

Ø  125W (Average Power on 200Ω ohm)

Ø  700W (Peak Power on 200Ω ohm)



Bipolar

Ø  50W (Average Power on 200 ohm ohm)

Ø  350W (Average Power on 200Ω ohm)

Output Frequency

4MHz (FDA, CE)

Input Voltage

100/110/120/220/230/240 VAC, 50/60Hz

Time Selection

Continuous, 1Sec, 1/2Sec, 1/4Sec, 1/8Sec

Power Consumption

450VA+10% Under on Maximum Ohm

Weight

10 Kg

Dimension

225X300X155 mm



SKU-MIPDTJWUBFI
in stockINR
Sometech
1 1
Dr Oppel Radio Frequency Generator- 4MHz Radio Frequency Surgical Device

Dr Oppel Radio Frequency Generator- 4MHz Radio Frequency Surgical Device


Product Enquiry

Sold By: PBX202001
Features
  • The Radio Frequency Output 4 MHz  The Precision Operation is Capable  By Minimizing Damage to the Cellular Tissue, the Fast Healing Can Be Secured
  • Compact Design with Great Output Power  700W Peak Power on 200Ω Ohm
  • No Odour & Smoke in Operation
  • Capable in Not Only Open Surgery but in Endoscopic Surgery also
  • Excellent Function of Haemostasis & Coagulation Are Performed Even In Heavy Bleeding
  • Bipolar & Monopolar Function
  • Low Voltage of Radio Frequency Output, Bringing Up No Electric Spark,
  • Durable & Long Life

Estimated Delivery Time:_5 to 7 Working Days


SHARE PRODUCT
VARIANTSELLERPRICEQUANTITY

Specifications

BrandSometech

Description of product

Dr Oppel Radio Frequency Generator



Dr Oppel Radio Frequency Generator- 4MHz Radio Frequency Surgical Device

Dr. Oppel’s electrode is not being heated by itself, electrode lets the cellular tissue produce the joule heat, and operates haemostasis, cutting and coagulation. 4MHz radio frequency makes possible precise cutting and deep coagulation even in water. Moreover, coagulation depth is determined by electrode as 5mm, 3mm and 2mm.

All functions can be carried out by just choosing the electrode& controlling output power without any mode change such as pure cut, blended cut, coagulation, micro coagulation, etc. The innovative & new function enables user to make more accurate & safer coagulation by time selection (continuous, 1Sec, 1/2Sec, 1/4Sec, 1/8Sec).


There is no carbonization and damages to the surrounding cellular tissue by electric spark and safety can be secured because this system is free from electric shock and burn which current electric surgical units make.



Applications
• Proctology
• General Surgery
• OB. /Gynaecology
• ENT
• Dermatology
• Plastic Surgery
• Urology
• Ophthalmology
• Pain Clinic



Features

The Radio Frequency Output 4 MHz

  • The Precision Operation is Capable
  • By Minimizing Damage to the Cellular Tissue, the Fast Healing Can Be Secured

Compact Design with Great Output Power

  • 700W Peak Power on 200Ω Ohm

No Odour & Smoke in Operation

Coagulation Depth Is Determined By Electrode –

  • 6mm Semi-Ball Electrode – Coagulation to the 5mm in Depth
  • 4mm Semi-Ball Electrode – Coagulation to the 3mm in Depth
  • 3mm Semi-Ball Electrode – Coagulation to the 2mm in Depth



Capable in Not Only Open Surgery but in Endoscopic Surgery also

Excellent Function of Haemostasis & Coagulation Are Performed Even In Heavy Bleeding

Low Voltage of Radio Frequency Output, Bringing Up No Electric Spark, There is Neither Carbonizing Nor Damage of Surrounding Cellular Tissue

Safety Can Be Secured Because This System is Free from Electric Shock & Burn

Bipolar & Monopolar Function

Durable & Long Life



Product Specification

Model Name/Number

Dr Oppel ST-501

Output Power

Monopolar

Ø  125W (Average Power on 200Ω ohm)

Ø  700W (Peak Power on 200Ω ohm)



Bipolar

Ø  50W (Average Power on 200 ohm ohm)

Ø  350W (Average Power on 200Ω ohm)

Output Frequency

4MHz (FDA, CE)

Input Voltage

100/110/120/220/230/240 VAC, 50/60Hz

Time Selection

Continuous, 1Sec, 1/2Sec, 1/4Sec, 1/8Sec

Power Consumption

450VA+10% Under on Maximum Ohm

Weight

10 Kg

Dimension

225X300X155 mm
