6446d3733a43f779a5d7717b Vital Wave Portable Biphasic Defibrillator https:https://www.thepassbox.in/s/62aa95d9abc8fddaf93b9bf6/6447bd41afba3a7a1dd7e042/biphasic-defibrillator-1.png

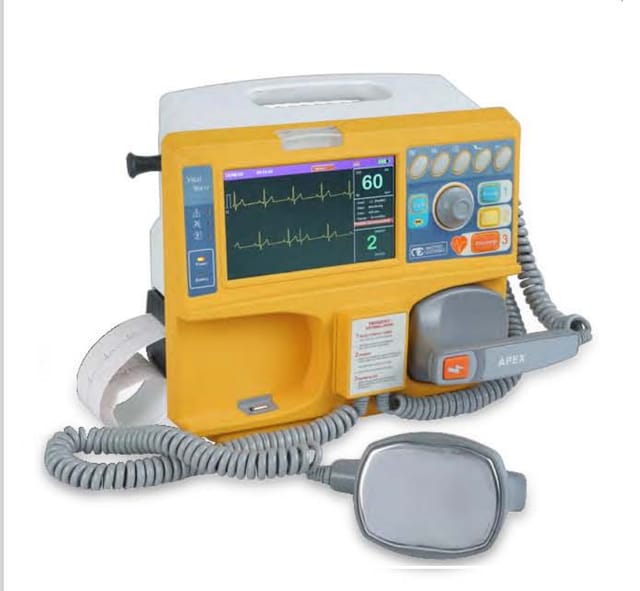

Vital Wave Portable Biphasic Defibrillator

  • 7' Colour TFV Display
  • Portable Biphasic Defibrillator
  • Easy Energy Selection Upto 270joules
  • Less Than G Seconds For Full Charge 270 Joules
  • More Than 50 Shocks On Full Charge Battery
  • Event Trend And Storage Upto 24 HRS
  • ECG Acquisition Via Paddles & Cable
  • Upgradable Tosp02 & NIBP

Technical Specifications:

Measuring Parameters:

Channel2 Channel
Electrode3/5 Leads
ECG AcquisitionPatient Cable and Paddles
Display2 Wave forms with HR  and Joules selected
LeadLead1,11,111,aVR, aVL, aVF, V
Gain Selection 5/10/15/20 mm/mv
Sweep Speed12.5, 25 or 55 mm/mv
Heart rate range30-240 bpm
Heart Rate Accuracy+2bpm
Frequency Response0.05 to 40Hz
CMRR>100dB
Input Impedance>100M Ohms

Recorder:

TypeHigh resolution thermal array recorder
Printing Speed25mm/sec
Printer Paper Size57mmx20Mtr
Details on printHR,ECG w/f along with energy delivery Date, Time, Patient Details (ID, name, age, sex), Joules selected Sweep speed and Gain

Display:

TypeColor TFT display
Size7"Diagonally
Resolution800x480 Pixels

Electrical:

Power InputAC 230V, 50 Hz
Battery Rating14.8 V/ 4400 mAh, Li-Polymer
Charging Time8 Hours
Operating Time40-50 shocks (270 joules)or more than 3 Hours monitoring without printing

General:

Weight5.4Kg
Dimensions403 (L)X 152 (H)X 324 (W) mm
Working temperature and humidity0-40 deg. cel. & u p to 90% non condensing
SKU-KJX7RW2COY
in stockINR 110000
MAESTROS ELECTRONICS
1 1
Vital Wave Portable Biphasic Defibrillator

Vital Wave Portable Biphasic Defibrillator

Be the first to review this product
₹110,000
₹145,000   (24%OFF)
1 item left in Stock
Add to Cart Buy Now
Sold By: PBX202010
Features
  • 7 " colour TFT display
  • Easy energy selection up to 270 joules
  • Less than 8 seconds for full charge 270 joules
  • More than 50 shocks on full charge battery
  • Even trend and storage up to 24 HRS
  • ECG acquisition via paddles & cable
  • Upgradable to spo2 & NIBP

Estimated Delivery Time:_5 to 7 Working Days


SHARE PRODUCT
VARIANTSELLERPRICEQUANTITY

Specifications

BrandMAESTROS ELECTRONICS

Description of product

Vital Wave Portable Biphasic Defibrillator

  • 7' Colour TFV Display
  • Portable Biphasic Defibrillator
  • Easy Energy Selection Upto 270joules
  • Less Than G Seconds For Full Charge 270 Joules
  • More Than 50 Shocks On Full Charge Battery
  • Event Trend And Storage Upto 24 HRS
  • ECG Acquisition Via Paddles & Cable
  • Upgradable Tosp02 & NIBP

Technical Specifications:

Measuring Parameters:

Channel2 Channel
Electrode3/5 Leads
ECG AcquisitionPatient Cable and Paddles
Display2 Wave forms with HR  and Joules selected
LeadLead1,11,111,aVR, aVL, aVF, V
Gain Selection 5/10/15/20 mm/mv
Sweep Speed12.5, 25 or 55 mm/mv
Heart rate range30-240 bpm
Heart Rate Accuracy+2bpm
Frequency Response0.05 to 40Hz
CMRR>100dB
Input Impedance>100M Ohms

Recorder:

TypeHigh resolution thermal array recorder
Printing Speed25mm/sec
Printer Paper Size57mmx20Mtr
Details on printHR,ECG w/f along with energy delivery Date, Time, Patient Details (ID, name, age, sex), Joules selected Sweep speed and Gain

Display:

TypeColor TFT display
Size7"Diagonally
Resolution800x480 Pixels

Electrical:

Power InputAC 230V, 50 Hz
Battery Rating14.8 V/ 4400 mAh, Li-Polymer
Charging Time8 Hours
Operating Time40-50 shocks (270 joules)or more than 3 Hours monitoring without printing

General:

Weight5.4Kg
Dimensions403 (L)X 152 (H)X 324 (W) mm
Working temperature and humidity0-40 deg. cel. & u p to 90% non condensing
