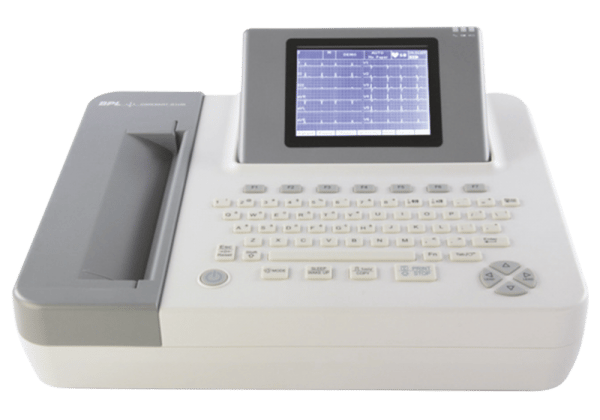

CARDIART 9108 - 12 Channel ECG

Cardiart 9108 is a 12-channel ECG recorder with built-in ECG parameters measurement and interpretation. With QWERTY keyboard and 5.7 inch high-resolution foldable display, this device is easy to use, supports external USB printer, as well as multi-format reports export.

Features

• 12-channel ECG recording
• 5.7-inch foldable LCD display
• Automatic parameter measurement and interpretation
• 24-bit A/D converter, 0.01 - 300 Hz bandwidth, 16000 Hz sampling frequency
• Internal storage of upto 800 ECGs that can be enlarged by USB
• Built-in rechargeable Li-ion battery
• Report formats: PDF and optional SCP/FDA-XML/DICOM data export
• Connectivity: FTP, supports barcode scanner & USB printer, optional Wi-Fi
• Optional PC interface software allows to access EMR/PACs/GDT-based systems (HL7 protocol)

Twelve Channel ECG Recording

Simultaneous 12 channel ECG recording with 12 lead simultaneous acquisition

High Resolution Foldable Display

5.7-inch-high resolution foldable display enables the easy viewing of patient demographics and real time ECG data option

Ease of Operation

The user-friendly design of the machine ensures easy operation

QWERTY Alphanumeric Keyboard

Ensures the freedom of easy use

Easy measurement and Interpretation

Built-in ECG parameters measurement and interpretation

External Archiving

Supports external archiving devices such as USB drive for virtually unlimited ECG data storage

Pace maker detection

This feature ensures recognition of pacing signal artifacts

Print Mode

Different print modes include pre-sample, real[1]time sample, period sample and arrhythmia triggered sample

Internal Memory

Has an Internal Memory, which can store up to 800 ECG recordings

Built-in Rechargeable Battery

High performance Li-ion rechargeable battery enables mains independent operations and provides battery use after charging

Trolley

Custom trolley avaialble as an option

PC Interface
Interfaces with PC using optional Smart-View software
